Creating the player scene ​

With the project settings in place, we can start working on the player-controlled character.

The first scene will define the Player object. One of the benefits of creating a separate Player scene is that we can test it separately, even before we've created other parts of the game.

Node structure ​

To begin, we need to choose a root node for the player object. As a general rule, a scene's root node should reflect the object's desired functionality - what the object is. Click the "Other Node" button and add an Area2D node to the scene.

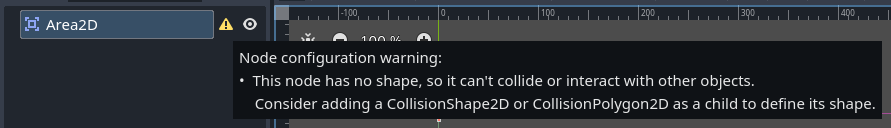

Godot will display a warning icon next to the node in the scene tree. You can ignore it for now. We will address it later.

With Area2D we can detect objects that overlap or run into the player. Change the node's name to Player by double-clicking on it. Now that we've set the scene's root node, we can add additional nodes to give it more functionality.

Before we add any children to the Player node, we want to make sure we don't accidentally move or resize them by clicking on them. Select the node and click the icon to the right of the lock. Its tooltip says "Groups the selected node with its children. This causes the parent to be selected when any child node is clicked in 2D and 3D view."

Save the scene. Click Scene -> Save, or press Ctrl + S on Windows/Linux or Cmd + S on macOS.

INFO

For this project, we will be following the Godot naming conventions.

  • GDScript: Classes (nodes) use PascalCase, variables and functions use snake_case, and constants use ALL_CAPS (See GDScript style guide).

  • C#: Classes, export variables and methods use PascalCase, private fields use _camelCase, local variables and parameters use camelCase (See C# style guide). Be careful to type the method names precisely when connecting signals.

Sprite animation ​

Click on the Player node and add (Ctrl + A on Windows/Linux or Cmd + A on macOS) a child node AnimatedSprite2D. The AnimatedSprite2D will handle the appearance and animations for our player. Notice that there is a warning symbol next to the node. An AnimatedSprite2D requires a SpriteFrames resource, which is a list of the animations it can display. To create one, find the Sprite Frames property under the Animation tab in the Inspector and click "[empty]" -> "New SpriteFrames". Click on the SpriteFrames you just created to open the "SpriteFrames" panel:

On the left is a list of animations. Click the "default" one and rename it to "walk". Then click the "Add Animation" button to create a second animation named "up". Find the player images in the "FileSystem" tab - they're in the art folder you unzipped earlier. Drag the two images for each animation, named playerGrey_up[1/2] and playerGrey_walk[1/2], into the "Animation Frames" side of the panel for the corresponding animation:

The player images are a bit too large for the game window, so we need to scale them down. Click on the AnimatedSprite2D node and set the Scale property to (0.5, 0.5). You can find it in the Inspector under the Node2D heading.

Finally, add a CollisionShape2D as a child of Player. This will determine the player's "hitbox", or the bounds of its collision area. For this character, a CapsuleShape2D node gives the best fit, so next to "Shape" in the Inspector, click "[empty]" -> "New CapsuleShape2D". Using the two size handles, resize the shape to cover the sprite:

When you're finished, your Player scene should look like this:

Make sure to save the scene again after these changes.

In the next part, we'll add a script to the player node to move and animate it. Then, we'll set up collision detection to know when the player got hit by something.
