Using VisualShaders

VisualShaders are the visual alternative for creating shaders.

As shaders are inherently linked to visuals, the graph-based approach with previews of textures, materials, etc. offers a lot of additional convenience compared to purely script-based shaders. On the other hand, VisualShaders do not expose all features of the shader script and using both in parallel might be necessary for specific effects.

INFO

If you are not familiar with shaders, start by reading Introduction to shaders.

Creating a VisualShader

VisualShaders can be created in any ShaderMaterial. To begin using VisualShaders, create a new ShaderMaterial in an object of your choice.

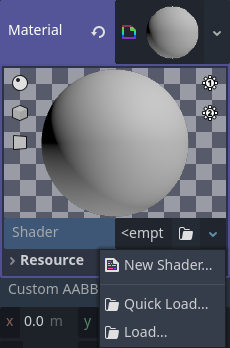

Then assign a Shader resource to the Shader property.

Click on the new Shader resource and the Create Shader dialog will open automatically. Change the Type option to VisualShader in the dropdown, then give it a name.

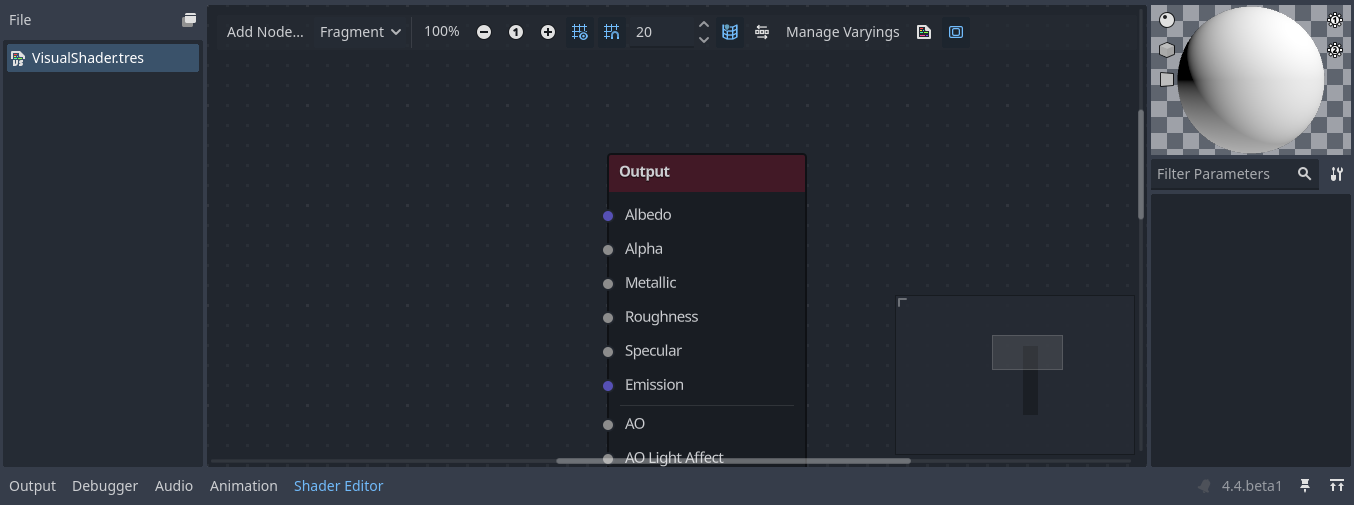

Click on the visual shader you just created to open the Shader Editor. The layout of the Shader Editor comprises two parts: the upper toolbar and the graph itself.

From left to right in the toolbar:

• The Add Node button displays a popup menu to let you add nodes to the shader graph.

• The drop-down menu is the shader type: Vertex, Fragment and Light. Like for script shaders, it defines what built-in nodes will be available.

• The following buttons and number input control the zooming level, grid snapping and distance between grid lines (in pixels).

• The toggle controls if the graph minimap in the bottom right of the editor is visible or not.

• The automatically arrange selected nodes button will try to organize any nodes you have selected as efficiently and cleanly as possible.

• The Manage Varyings button opens a dropdown that lets you add or remove a varying.

• The last icon shows the generated shader code corresponding to your graph.

INFO

Although VisualShaders do not require coding, they share the same logic with script shaders. It is advised to learn the basics of both to have a good understanding of the shading pipeline.

The visual shader graph is converted to a script shader behind the scene, and you can see this code by pressing the last button in the toolbar. This can be convenient to understand what a given node does and how to reproduce it in scripts.

Using the Visual Shader Editor

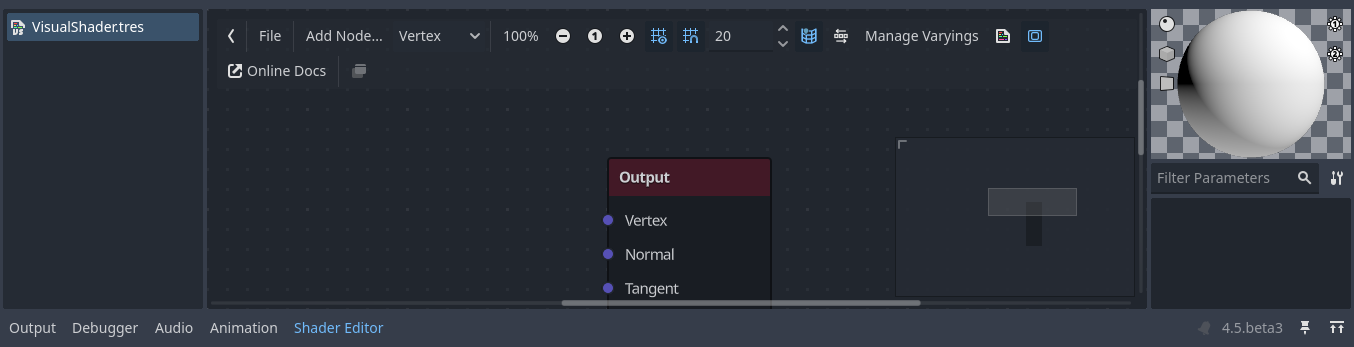

By default, every new VisualShader will have an output node. Every node connection ends at one of the output node's sockets. A node is the basic unit to create your shader. To add a new node, click on the Add Node button on the upper left corner or right click on any empty location in the graph, and a menu will pop up.

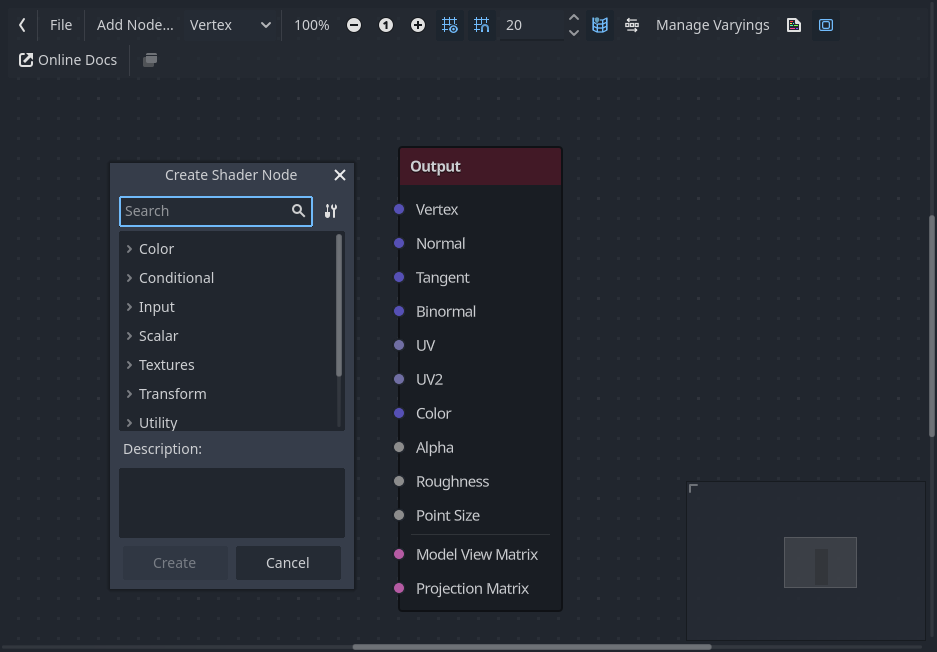

This popup has the following properties:

• If you right-click on the graph, this menu will be called at the cursor position and the created node, in that case, will also be placed under that position; otherwise, it will be created at the graph's center.

• It can be resized horizontally and vertically allowing more content to be shown. Size transform and tree content position are saved between the calls, so if you suddenly closed the popup you can easily restore its previous state.

• The Expand All and Collapse All options in the drop-down option menu can be used to easily list the available nodes.

• You can also drag and drop nodes from the popup onto the graph.

While the popup has nodes sorted in categories, it can seem overwhelming at first. Try to add some of the nodes, plug them in the output socket and observe what happens.

When connecting any scalar output to a vector input, all components of the vector will take the value of the scalar.

When connecting any vector output to a scalar input, the value of the scalar will be the average of the vector's components.

Visual Shader node interface

Visual shader nodes have input and output ports. The input ports are located on the left side of the node, and output ports are located on the right side of the node.

These ports are colored to differentiate type of port:

Port types

Type	Color	Description	Example
Scalar	Gray	Scalar is a single value.
Vector	Purple	Vector is a set of values.
Boolean	Green	On or off, true or false.
Transform	Pink	A matrix, usually used to transform vertices.
Sampler	Orange	A texture sampler. It can be used to sample textures.

All of the types are used in the calculations of vertices, fragments, and lights in the shader. For example: matrix multiplication, vector addition, or scalar division.

There are other types but these are the main ones.

Visual Shader nodes

Below are some special nodes that are worth knowing about. The list is not exhaustive and might be expanded with more nodes and examples.

Expression node

The Expression node allows you to write Godot Shading Language (GLSL-like) expressions inside your visual shaders. The node has buttons to add any amount of required input and output ports and can be resized. You can also set up the name and type of each port. The expression you have entered will apply immediately to the material (once the focus leaves the expression text box). Any parsing or compilation errors will be printed to the Output tab. The outputs are initialized to their zero value by default. The node is located under the Special tab and can be used in all shader modes.

The possibilities of this node are almost limitless – you can write complex procedures, and use all the power of text-based shaders, such as loops, the discard keyword, extended types, etc. For example:

Reroute node

The Reroute node is used purely for organizational purposes. In a complicated shader with many nodes you may find that the paths between nodes can make things hard to read. Reroute, as its name suggests, allows you to adjust the path between nodes to make things easier to read. You can even have multiple reroute nodes for a single path, which can be used to make right angles.

To move a reroute node move your mouse cursor above it, and grab the handle that appears.

Fresnel node

The Fresnel node is designed to accept normal and view vectors and produces a scalar which is the saturated dot product between them. Additionally, you can setup the inversion and the power of equation. The Fresnel node is great for adding a rim-like lighting effect to objects.

Boolean node

The Boolean node can be converted to Scalar or Vector to represent 0 or 1 and (0, 0, 0) or (1, 1, 1) respectively. This property can be used to enable or disable some effect parts with one click.

If node

The If node allows you to setup a vector which will be returned the result of the comparison between a and b. There are three vectors which can be returned: a == b (in that case the tolerance parameter is provided as a comparison threshold – by default it is equal to the minimal value, i.e. 0.00001), a > b and a < b.

Switch node

The Switch node returns a vector if the boolean condition is true or false. Boolean was introduced above. If you convert a vector to a true boolean, all components of the vector should be above zero.
