Import configuration

Godot provides several ways to customize the imported data, such as the import dock, the advanced import setting dialog, and inherited scenes. This can be used to make further changes to the imported scene, such as adjusting meshes, adding physics information, and adding new nodes. You can also write a script that runs code at the end of the import process to perform arbitrary customization.

Note that, when applicable, modifying the original data should be preferred to configuring the scene after import. This helps minimize the differences between the 3D modeling application and the imported scene. See the Model export considerations and Node type customization using name suffixes articles for more information.

Import workflows

Since Godot can only save its own scene format (.tscn/.scn), Godot cannot save over the original 3D scene file (which uses a different format). This is also a safer approach as it avoids making accidental changes to the source file.

To allow customizing the scene and its materials, Godot's scene importer allows for different workflows regarding how data is imported.

Import dock after selecting a 3D scene in the FileSystem dock

This import process is customizable using 3 separate interfaces, depending on your needs:

• The Import dock, after selecting the 3D scene by clicking it once in the FileSystem dock.

• The Advanced Import Settings dialog, which can be accessed by double-clicking the 3D scene in the FileSystem dock or by clicking the Advanced… button in the Import dock. This allows you to customize per-object options in Godot.

• Node type customization using name suffixes, which are special suffixes added to object names in the 3D modeling software. This allows you to customize per-object options in the 3D modeling software.

For basic customization, using the Import dock suffices. However, for more complex operations such as defining material overrides on a per-material basis, you'll need to use the Advanced Import Settings dialog, import hints, or possibly both.

Using the Import dock

The following options can be adjusted in the Import dock after selecting a 3D scene in the FileSystem dock:

• Root Type: The node type to use as a root node. Using node types that inherit from Node3D is recommended. Otherwise, you'll lose the ability to position the node directly in the 3D editor.

• Root Name: The name of the root node in the imported scene. This is generally not noticeable when instancing the scene in the editor (or drag-and-dropping from the FileSystem dock), as the root node is renamed to match the filename in this case.

• Apply Root Scale: If enabled, Root Scale will be applied on the meshes and animations directly, while keeping the root node's scale to the default (1, 1, 1). This means that if you add a child node later on within the imported scene, it won't be scaled. If disabled, Root Scale will multiply the scale of the root node instead.

Meshes

• Ensure Tangents: If checked, generate vertex tangents using Mikktspace if the input meshes don't have tangent data. When possible, it's recommended to let the 3D modeling software generate tangents on export instead on relying on this option. Tangents are required for correct display of normal and height maps, along with any material/shader features that require tangents. If you don't need material features that require tangents, disabling this can reduce output file size and speed up importing if the source 3D file doesn't contain tangents.

• Generate LODs: If checked, generates lower detail variants of the mesh which will be displayed in the distance to improve rendering performance. Not all meshes benefit from LOD, especially if they are never rendered from far away. Disabling this can reduce output file size and speed up importing. See Mesh level of detail (LOD) for more information.

• Create Shadow Meshes: If checked, enables the generation of shadow meshes on import. This optimizes shadow rendering without reducing quality by welding vertices together when possible. This in turn reduces the memory bandwidth required to render shadows. Shadow mesh generation currently doesn't support using a lower detail level than the source mesh (but shadow rendering will make use of LODs when relevant).

• Light Baking: Configures the meshes' global illumination mode in the 3D scene. If set to Static Lightmaps, sets the meshes' GI mode to Static and generates UV2 on import for Using Lightmap global illumination.

• Lightmap Texel Size: Only visible if Light Baking is set to Static Lightmaps. Controls the size of each texel on the baked lightmap. A smaller value results in more precise lightmaps, at the cost of larger lightmap sizes and longer bake times.

Skins

• Use Named Skins: If checked, use named Skin for animation. The MeshInstance3D node contains 3 properties of relevance here: a skeleton NodePath pointing to the Skeleton3D node (usually ..), a mesh, and a skin:

  • The Skeleton3D node contains a list of bones with names, their pose and rest, a name and a parent bone.

  • The mesh is all of the raw vertex data needed to display a mesh. In terms of the mesh, it knows how vertices are weight-painted and uses some internal numbering often imported from 3D modeling software.

  • The skin contains the information necessary to bind this mesh onto this Skeleton3D. For every one of the internal bone IDs chosen by the 3D modeling software, it contains two things. Firstly, a Matrix known as the Bind Pose Matrix, Inverse Bind Matrix, or IBM for short. Secondly, the Skin contains each bone's name (if Use Named Skins is enabled), or the bone's index within the Skeleton3D list (if Use Named Skins is disabled).

Together, this information is enough to tell Godot how to use the bone poses in the Skeleton3D node to render the mesh from each MeshInstance3D. Note that each MeshInstance3D may share binds, as is common in models exported from Blender, or each MeshInstance3D may use a separate Skin object, as is common in models exported from other tools such as Maya.

Animation

• Import: If checked, import animations from the 3D scene.

• FPS: The number of frames per second to use for baking animation curves to a series of points with linear interpolation. It's recommended to configure this value to match the value you're using as a baseline in your 3D modeling software. Higher values result in more precise animation with fast movement changes, at the cost of higher file sizes and memory usage. Thanks to interpolation, there is usually not much benefit in going above 30 FPS (as the animation will still appear smooth at higher rendering framerates).

• Trimming: Trim the beginning and end of animations if there are no keyframe changes. This can reduce output file size and memory usage with certain 3D scenes, depending on the contents of their animation tracks.

• Remove Immutable Tracks: Remove animation tracks that only contain default values. This can reduce output file size and memory usage with certain 3D scenes, depending on the contents of their animation tracks.

Import Script

• Path: Path to an import script, which can run code after the import process has completed for custom processing. See Using import scripts for automation for more information.

glTF

• Embedded Texture Handling: Controls how textures embedded within glTF scenes should be handled. Discard All Textures will not import any textures, which is useful if you wish to manually set up materials in Godot instead. Extract Textures extracts textures to external images, resulting in smaller file sizes and more control over import options. Embed as Basis Universal and Embed as Uncompressed keeps the textures embedded in the imported scene, with and without VRAM compression respectively.

FBX

• Importer Which import method is used. ubfx handles fbx files as fbx files. FBX2glTF converts FBX files to glTF on import and requires additonal setup. FBX2glTF is not recommended unless you have a specific rason to use it over ufbx or working with a different file format.

• Allow Geometry Helper Nodes enables or disables geometry helper nodes

• Embedded Texture Handling: Controls how textures embedded within fbx scenes should be handled. Discard All Textures will not import any textures, which is useful if you wish to manually set up materials in Godot instead. Extract Textures extracts textures to external images, resulting in smaller file sizes and more control over import options. Embed as Basis Universal and Embed as Uncompressed keeps the textures embedded in the imported scene, with and without VRAM compression respectively.

Using the Advanced Import Settings dialog

The first tab you'll see is the Scene tab. The options available in the panel on the right are identical to the Import dock, but you have access to a 3D preview. The 3D preview can be rotated by holding down the left mouse button then dragging the mouse. Zoom can be adjusted using the mouse wheel.

Advanced Import Settings dialog (Scene tab). Credit: Modern Arm Chair 01 - Poly Haven

Configuring node import options

You can select individual nodes that compose the scene while in the Scene tab using the tree view at the left:

Selecting a node in the Advanced Import Settings dialog (Materials tab)

This exposes several per-node import options:

• Skip Import: If checked, the node will not be present in the final imported scene. Enabling this disables all other options.

• Generate > Physics: If checked, generates a PhysicsBody3D parent node with collision shapes that are siblings to the MeshInstance3D node.

• Generate > NavMesh: If checked, generates a NavigationRegion3D child node for 3D navigation overview. Mesh + NavMesh will keep the original mesh visible, while NavMesh Only will only import the navigation mesh (without a visual representation). NavMesh Only is meant to be used when you've manually authored a simplified mesh for navigation.

• Generate > Occluder: If checked, generates an OccluderInstance3D sibling node for Occlusion culling using the mesh's geometry as a basis for the occluder's shape. Mesh + Occluder will keep the original mesh visible, while Occluder Only will only import the occluder (without a visual representation). Occluder Only is meant to be used when you've manually authored a simplified mesh for occlusion culling.

These options are only visible if some of the above options are enabled:

• Physics > Body Type: Only visible if Generate > Physics is enabled. Controls the PhysicsBody3D that should be created. Static creates a StaticBody3D, Dynamic creates a RigidBody3D, Area creates an Area3D.

• Physics > Shape Type: Only visible if Generate > Physics is enabled. Trimesh allows for precise per-triangle collision, but it can only be used with a Static body type. Other types are less precise and may require manual configuration, but can be used with any body type. For static level geometry, use Trimesh. For dynamic geometry, use primitive shapes if possible for better performance, or use one of the convex decomposition modes if the shape is large and complex.

• Decomposition > Advanced: Only visible if Physics > Shape Type is Decompose Convex. If checked, allows adjusting advanced decomposition options. If disabled, only a preset Precision can be adjusted (which is usually sufficient).

• Decomposition > Precision: Only visible if Physics > Shape Type is Decompose Convex. Controls the precision to use for convex decomposition. Higher values result in more detailed collision, at the cost of slower generation and increased CPU usage during physics simulation. To improve performance, it's recommended to keep this value as low as possible for your use cases.

• Occluder > Simplification Distance: Only visible if Generate > Occluder is set to Mesh + Occluder or Occluder Only. Higher values result in an occluder mesh with fewer vertices (resulting in decreased CPU utilization), at the cost of more occlusion culling issues (such as false positives or false negatives). If you run into objects disappearing when they shouldn't when the camera is near a certain mesh, try decreasing this value.

Configuring mesh and material import options

In the Advanced Import Settings dialog, there are 2 ways to select individual meshes or materials:

• Switch to the Meshes or Materials tab in the top-left corner of the dialog.

• Stay in the Scene tab, but unfold the options on the tree view on the left. After choosing a mesh or material, this presents the same information as the Meshes and Materials tabs, but in a tree view instead of a list.

If you select a mesh, different options will appear in the panel on the right:

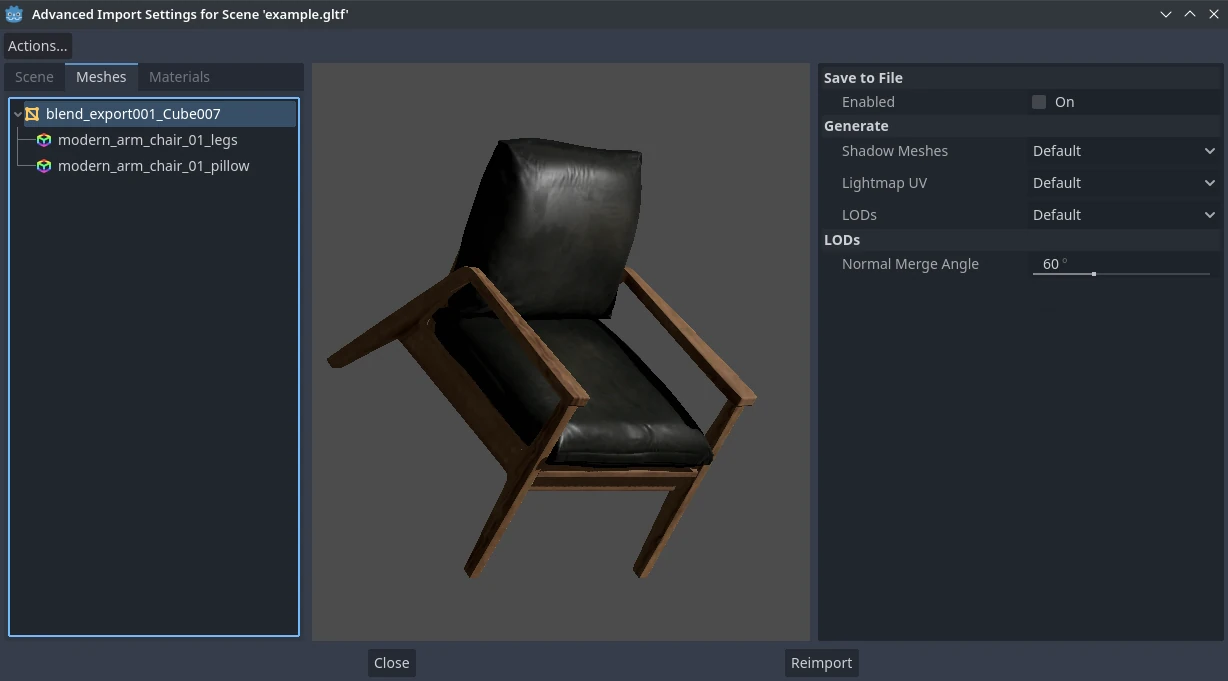

Advanced Import Settings dialog (Meshes tab)

The options are as follows:

• Save to File: Saves the Mesh resource to an external file (this isn't a scene file). You generally don't need to use this for placing the mesh in a 3D scene – instead, you should instance the 3D scene directly. However, having direct access to the Mesh resource is useful for specific nodes, such as MeshInstance3D, MultiMeshInstance3D, GPUParticles3D or CPUParticles3D.

  • You will also need to specify an output file path using the option that appears after enabling Save to File. It's recommended to use the .res output file extension for smaller file sizes and faster loading speeds, as .tres is inefficient for writing large amounts of data.

• Generate > Shadow Meshes: Per-mesh override for the Meshes > Create Shadow Meshes scene-wide import option described in Using the Import dock. Default will use the scene-wide import option, while Enable or Disable can forcibly enable or disable this behavior on a specific mesh.

• Generate > Lightmap UV: Per-mesh override for the Meshes > Light Baking scene-wide import option described in Using the Import dock. Default will use the scene-wide import option, while Enable or Disable can forcibly enable or disable this behavior on a specific mesh.

  • Setting this to Enable on a scene with the Static light baking mode is equivalent to configuring this mesh to use Static Lightmaps. Setting this to Disable on a scene with the Static Lightmaps light baking mode is equivalent to configuring this mesh to use Static instead.

• Generate > LODs: Per-mesh override for the Meshes > Generate LODs scene-wide import option described in Using the Import dock. Default will use the scene-wide import option, while Enable or Disable can forcibly enable or disable this behavior on a specific mesh.

• LODs > Normal Split Angle: The minimum angle difference between two vertices required to preserve a geometry edge in mesh LOD generation. If running into visual issues with LOD generation, decreasing this value may help (at the cost of less efficient LOD generation).

• LODs > Normal Merge Angle: The minimum angle difference between two vertices required to preserve a geometry edge in mesh LOD generation. If running into visual issues with LOD generation, decreasing this value may help (at the cost of less efficient LOD generation).

If you select a material, only one option will appear in the panel on the right:

Advanced Import Settings dialog (Materials tab)

When Use External is checked and an output path is specified, this lets you use an external material instead of the material that is included in the original 3D scene file; see the section below.

Extracting materials to separate files

While Godot can import materials authored in 3D modeling software, the default configuration may not be suitable for your needs. For example:

• You want to configure material features not supported by your 3D application.

• You want to use a different texture filtering mode, as this option is configured in the material since Godot 4.0 (and not in the image).

• You want to replace one of the materials with an entirely different material, such as a custom shader.

To be able to modify the 3D scene's materials in the Godot editor, you need to use external material resources.

In the top-left corner of the Advanced Import Settings dialog, choose Actions… > Extract Materials:

Extracting all built-in materials to external resources in the Advanced Import Settings dialog

After choosing this option, select a folder to extract material .tres files to, then confirm the extraction:

Confirming material extraction in the Advanced Import Settings subdialog

INFO

After extracting materials, the 3D scene will automatically be configured to use external material references. As a result, you don't need to manually enable Use External on every material to make the external .tres material effective.

When Use External is enabled, remember that the Advanced Import Settings dialog will keep displaying the mesh's original materials (the ones designed in the 3D modeling software). This means your customizations to the materials won't be visible within this dialog. To preview your modified materials, you need to place the imported 3D scene in another scene using the editor.

Godot will not overwrite changes made to extracted materials when the source 3D scene is reimported. However, if the material name is changed in the source 3D file, the link between the original material and the extracted material will be lost. As a result, you'll need to use the Advanced Import Settings dialog to associate the renamed material to the existing extracted material.

The above can be done in the dialog's Materials tab by selecting the material, enabling Save to File, then specifying the save path using the Path option that appears after enabling Save to File.

Using import scripts for automation

A special script to process the whole scene after import can be provided. This is great for post-processing, changing materials, doing funny stuff with the geometry, and more.

Create a script that is not attached to any node by right-clicking in the FileSystem dock and choosing New > Script…. In the script editor, write the following:

@tool # Needed so it runs in editor.
extends EditorScenePostImport

# This sample changes all node names.
# Called right after the scene is imported and gets the root node.
func _post_import(scene):
    # Change all node names to "modified_[oldnodename]"
    iterate(scene)
    return scene # Remember to return the imported scene

# Recursive function that is called on every node
# (for demonstration purposes; EditorScenePostImport only requires a `_post_import(scene)` function).
func iterate(node):
    if node != null:
        print_rich("Post-import: [b]%s[/b] -> [b]%s[/b]" % [node.name, "modified_" + node.name])
        node.name = "modified_" + node.name
        for child in node.get_children():
            iterate(child)

The _post_import(scene: Node) function takes the imported scene as argument (the parameter is actually the root node of the scene). The scene that will finally be used must be returned (even if the scene can be entirely different).

To use your script, locate the script in the import tab's "Path" option under the "Import Script" category.

Using animation libraries

As of Godot 4.0, you can choose to import only animations from a glTF file and nothing else. This is used in some asset pipelines to distribute animations separately from models. For example, this allows you to use one set of animations for several characters, without having to duplicate animation data in every character.

To do so, select the glTF file in the FileSystem dock, then change the import mode to Animation Library in the Import dock:

Changing the import type to Animation Library in the Import dock

Click Reimport and restart the editor when prompted. After restarting, the glTF file will be imported as an AnimationLibrary instead of a PackedScene. This animation library can then be referenced in an AnimationPlayer node.

The import options that are visible after changing the import mode to Animation Library act the same as when using the Scene import mode. See Using the Import dock for more information.

Filter script

It is possible to specify a filter script in a special syntax to decide which tracks from which animations should be kept.

The filter script is executed against each imported animation. The syntax consists of two types of statements, the first for choosing which animations to filter, and the second for filtering individual tracks within the matched animation. All name patterns are performed using a case-insensitive expression match, with support for ? and * wildcards (using String.matchn() under the hood).

The script must start with an animation filter statement (as denoted by the line beginning with an @). For example, if we would like to apply filters to all imported animations which have a name ending in "_Loop":

@+*_Loop

Similarly, additional patterns can be added to the same line, separated by commas. Here is a modified example to additionally include all animations with names that begin with "Arm_Left", but also exclude all animations which have names ending in "Attack":

@+*_Loop, +Arm_Left*, -*Attack

Following the animation selection filter statement, we add track filtering patterns to indicate which animation tracks should be kept or discarded. If no track filter patterns are specified, then all tracks within the matched animations will be discarded!

It's important to note that track filter statements are applied in order for each track within the animation, this means that one line may include a track, a later rule can still discard it. Similarly, a track excluded by an early rule may then be re-included once again by a filter rule further down in the filter script.

For example: include all tracks in animations with names ending in "_Loop", but discard any tracks affecting a "Skeleton" which end in "Control", unless they have "Arm" in their name:

@+*_Loop
+*
-Skeleton:*Control
+*Arm*

In the above example, tracks like "Skeleton:Leg_Control" would be discarded, while tracks such as "Skeleton:Head" or "Skeleton:Arm_Left_Control" would be retained.

Any track filter lines that do not begin with a + or - are ignored.

Storage

By default, animations are saved as built-in. It is possible to save them to a file instead. This allows adding custom tracks to the animations and keeping them after a reimport.

Optimizer

When animations are imported, an optimizer is run, which reduces the size of the animation considerably. In general, this should always be turned on unless you suspect that an animation might be broken due to it being enabled.

Clips

It is possible to specify multiple animations from a single timeline as clips. For this to work, the model must have only one animation that is named default. To create clips, change the clip amount to something greater than zero. You can then name a clip, specify which frames it starts and stops on, and choose whether the animation loops or not.

Scene inheritance

In many cases, it may be desired to make manual modifications to the imported scene. By default, this is not possible because if the source 3D asset changes, Godot will re-import the whole scene.

However, it is possible to make local modifications by using scene inheritance. If you try to open the imported scene using Scene > Open Scene… or Scene > Quick Open Scene…, the following dialog will appear:

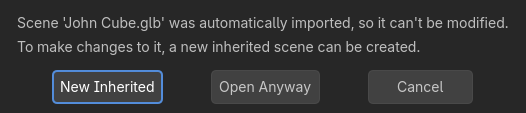

Dialog when opening an imported 3D scene in the editor

In inherited scenes, the only limitations for modification are:

• Nodes from the base scene can't be removed, but additional nodes can be added anywhere.

• Subresources can't be edited. Instead, you need to save them externally as described above.

Other than that, everything is allowed.
