Making plugins

About plugins

A plugin is a great way to extend the editor with useful tools. It can be made entirely with GDScript and standard scenes, without even reloading the editor. Unlike modules, you don't need to create C++ code nor recompile the engine. While this makes plugins less powerful, there are still many things you can do with them. Note that a plugin is similar to any scene you can already make, except it is created using a script to add editor functionality.

This tutorial will guide you through the creation of two plugins so you can understand how they work and be able to develop your own. The first is a custom node that you can add to any scene in the project, and the other is a custom dock added to the editor.

Creating a plugin

Before starting, create a new empty project wherever you want. This will serve as a base to develop and test the plugins.

The first thing you need for the editor to identify a new plugin is to create two files: a plugin.cfg for configuration and a tool script with the functionality. Plugins have a standard path like addons/plugin_name inside the project folder. Godot provides a dialog for generating those files and placing them where they need to be.

In the main toolbar, click the Project dropdown. Then click Project Settings.... Go to the Plugins tab and then click on the Create New Plugin button in the top-right.

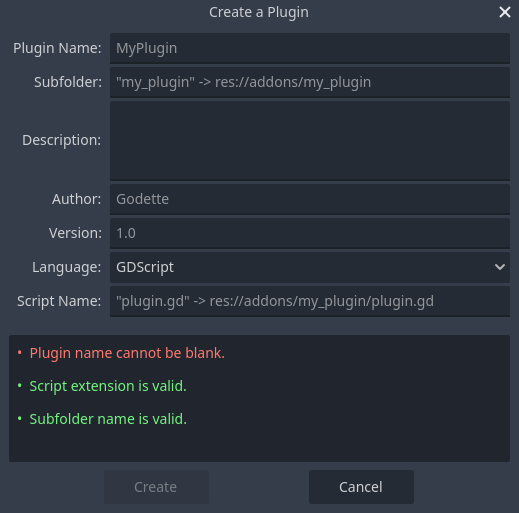

You will see the dialog appear, like so:

The placeholder text in each field describes how it affects the plugin's creation of the files and the config file's values.

To continue with the example, use the following values:

Plugin Name: My Custom Node
Subfolder: my_custom_node
Description: A custom node made to extend the Godot Engine.
Author: Your Name Here
Version: 1.0.0
Language: GDScript
Script Name: custom_node.gd
Activate now: No

WARNING

Unchecking the Activate now? option in C# is always required because, like every other C# script, the EditorPlugin script needs to be compiled which requires building the project. After building the project the plugin can be enabled in the Plugins tab of Project Settings.

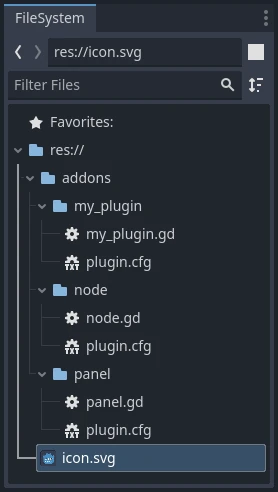

You should end up with a directory structure like this:

plugin.cfg is an INI file with metadata about your plugin. The name and description help people understand what it does. Your name helps you get properly credited for your work. The version number helps others know if they have an outdated version; if you are unsure on how to come up with the version number, check out Semantic Versioning. The main script file will instruct Godot what your plugin does in the editor once it is active.

The script file

Upon creation of the plugin, the dialog will automatically open the EditorPlugin script for you. The script has two requirements that you cannot change: it must be a @tool script, or else it will not load properly in the editor, and it must inherit from EditorPlugin.

WARNING

In addition to the EditorPlugin script, any other GDScript that your plugin uses must also be a tool. Any GDScript without @tool used by the editor will act like an empty file!

It's important to deal with initialization and clean-up of resources. A good practice is to use the virtual function _enter_tree() to initialize your plugin and _exit_tree() to clean it up. Thankfully, the dialog generates these callbacks for you. Your script should look something like this:

@tool
extends EditorPlugin


func _enter_tree():
    # Initialization of the plugin goes here.
    pass


func _exit_tree():
    # Clean-up of the plugin goes here.
    pass

This is a good template to use when creating new plugins.

A custom node

Sometimes you want a certain behavior in many nodes, such as a custom scene or control that can be reused. Instancing is helpful in a lot of cases, but sometimes it can be cumbersome, especially if you're using it in many projects. A good solution to this is to make a plugin that adds a node with a custom behavior.

WARNING

Nodes added via an EditorPlugin are "CustomType" nodes. While they work with any scripting language, they have fewer features than Registering named classes. If you are writing GDScript or NativeScript, we recommend using Script Classes instead.

To create a new node type, you can use the function add_custom_type() from the EditorPlugin class. This function can add new types to the editor (nodes or resources). However, before you can create the type, you need a script that will act as the logic for the type. While that script doesn't have to use the @tool annotation, it can be added so the script runs in the editor.

For this tutorial, we'll create a button that prints a message when clicked. For that, we'll need a script that extends from Button. It could also extend BaseButton if you prefer:

@tool
extends Button


func _enter_tree():
    pressed.connect(clicked)


func clicked():
    print("You clicked me!")

That's it for our basic button. You can save this as my_button.gd inside the plugin folder. You'll also need a 16×16 icon to show in the scene tree. If you don't have one, you can grab the default one from the engine and save it in your addons/my_custom_node folder as icon.png, or use the default Godot logo (preload("res://icon.svg")).

TIP

SVG images that are used as custom node icons should have the Editor > Scale With Editor Scale and Editor > Convert Colors With Editor ThemeEditor > Scale With Editor Scale enabled. This allows icons to follow the editor's scale and theming settings if the icons are designed with the same color palette as Godot's own icons.

Now, we need to add it as a custom type so it shows on the Create New Node dialog. For that, change the custom_node.gd script to the following:

@tool
extends EditorPlugin


func _enter_tree():
    # Initialization of the plugin goes here.
    # Add the new type with a name, a parent type, a script and an icon.
    add_custom_type("MyButton", "Button", preload("my_button.gd"), preload("icon.png"))


func _exit_tree():
    # Clean-up of the plugin goes here.
    # Always remember to remove it from the engine when deactivated.
    remove_custom_type("MyButton")

With that done, the plugin should already be available in the plugin list in the Project Settings, so activate it as explained in Checking the results.

Then try it out by adding your new node:

When you add the node, you can see that it already has the script you created attached to it. Set a text to the button, save and run the scene. When you click the button, you can see some text in the console:

A custom dock

Sometimes, you need to extend the editor and add tools that are always available. An easy way to do it is to add a new dock with a plugin. Docks are just scenes based on Control, so they are created in a way similar to usual GUI scenes.

Creating a custom dock is done just like a custom node. Create a new plugin.cfg file in the addons/my_custom_dock folder, then add the following content to it:

[plugin]

name="My Custom Dock"
description="A custom dock made so I can learn how to make plugins."
author="Your Name Here"
version="1.0"
script="custom_dock.gd"

Then create the script custom_dock.gd in the same folder. Fill it with the template we've seen before to get a good start.

Since we're trying to add a new custom dock, we need to create the contents of the dock. This is nothing more than a standard Godot scene: just create a new scene in the editor then edit it.

For an editor dock, the root node must be a Control or one of its child classes. For this tutorial, you can create a single button. The name of the root node will also be the name that appears on the dock tab, so be sure to give it a short and descriptive name. Also, don't forget to add some text to your button.

Save this scene as my_dock.tscn. Now, we need to grab the scene we created then add it as a dock in the editor. For this, you can rely on the function add_control_to_dock() from the EditorPlugin class.

You need to select a dock position and define the control to add (which is the scene you just created). Don't forget to remove the dock when the plugin is deactivated. The script could look like this:

@tool
extends EditorPlugin


# A class member to hold the dock during the plugin life cycle.
var dock


func _enter_tree():
    # Initialization of the plugin goes here.
    # Load the dock scene and instantiate it.
    dock = preload("res://addons/my_custom_dock/my_dock.tscn").instantiate()

    # Add the loaded scene to the docks.
    add_control_to_dock(DOCK_SLOT_LEFT_UL, dock)
    # Note that LEFT_UL means the left of the editor, upper-left dock.


func _exit_tree():
    # Clean-up of the plugin goes here.
    # Remove the dock.
    remove_control_from_docks(dock)
    # Erase the control from the memory.
    dock.free()

Note that, while the dock will initially appear at its specified position, the user can freely change its position and save the resulting layout.

Checking the results

It's now time to check the results of your work. Open the Project Settings and click on the Plugins tab. Your plugin should be the only one on the list.

You can see the plugin is not enabled. Click the Enable checkbox to activate the plugin. The dock should become visible before you even close the settings window. You should now have a custom dock:

Going beyond

Now that you've learned how to make basic plugins, you can extend the editor in several ways. Lots of functionality can be added to the editor with GDScript; it is a powerful way to create specialized editors without having to delve into C++ modules.

You can make your own plugins to help yourself and share them in the Asset Library so that people can benefit from your work.

Registering autoloads/singletons in plugins

It is possible for editor plugins to automatically register Singletons (Autoload) when the plugin is enabled. This also includes unregistering the autoload when the plugin is disabled.

This makes setting up plugins faster for users, as they no longer have to manually add autoloads to their project settings if your editor plugin requires the use of an autoload.

Use the following code to register a singleton from an editor plugin:

@tool
extends EditorPlugin

# Replace this value with a PascalCase autoload name, as per the GDScript style guide.
const AUTOLOAD_NAME = "SomeAutoload"


func _enter_tree():
    # The autoload can be a scene or script file.
    add_autoload_singleton(AUTOLOAD_NAME, "res://addons/my_addon/some_autoload.tscn")


func _exit_tree():
    remove_autoload_singleton(AUTOLOAD_NAME)
